0808 196 938813.8m Platform Height: The A14JE offers great ability to extend over obstacles for the widest reach, supporting 15.8m working height.
AC Motors: Lifting and driving is facilitated by AC motors which power the unit for maintenance-free lifting operation.
Proportional Control: The proportional lift and drive controls deliver permits precise control and comfortable operation.
Easy Operation: The auto-levelling, hydraulic platform rotation delivers exceptional productivity and intuitive control.
Eco-friendly, Zero Emissions: The A14JE provides environmentally friendly, zero emission operation for both indoor and outdoor applications.
Horn/Hour Meter: The meters are included so you can keep track of your usage for cost and energy efficiency.
Intelligent Diagnostic System: Featuring integrated anti-collision protection, overload sensing system, over tilt protection and emergency descent with alarm for ultimate safety and security.
Two Battery Options: Choose between lead-acid battery and lithium battery for the most convenience.

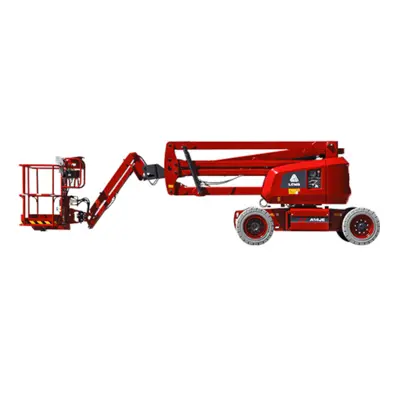

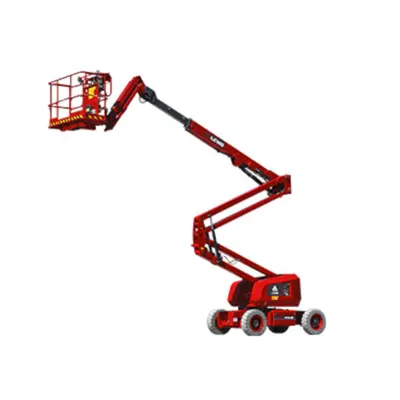

The LGMG A14JE Electric Articulating Boom Lift provides a quiet, zero-emission operation. It features a 13.8m platform height, offering a 15.8m maximum working height. The jib delivers a 7.81m horizontal outreach, capable of extending over obstacles outdoors and in tight working areas. The A14JE offers excellent up-and-over access and a long battery duty cycle, boasting a 230kg platform capacity.
The simple and reliable design and compact size make this articulating boom ideal for confined, busy work areas. The small tail swing and tight turning radius optimise the suitability to space-limited zones. Featuring a real-wheel drive and break, the battery powered unit and foam-filled non-marking tires provides quiet and non-disruptive lifting performance.
The LGMG A14JE is easy to operate. The proportional control permits precise positioning and smooth driving for comfortable operation. The self-levelling platform, equipped with a tool box, in combination with the hydraulic platform rotation delivers exceptional productivity and intuitive control. Additionally, the intelligent diagnostic system allows for quick troubleshooting, reducing potential downtime.
See More Like This: Cherry Pickers
| Max Work Height: | 15.8m |
| Raised Platform Height: | 13.8m |
| Horizontal Outreach: | 7.81m |
| Up and Over Height: | 7.26m |
| Platform Length: | 1.83m |
| Platform Width: | 0.76m |
| Platform Capacity: | 230kg |
| Stowed Length: | 6.66m |
| Length-Transport (Jib Tucked): | 5.67m |
| Overall Width: | 1.8m |
| Stowed Height: | 1.98m |
| Height-Transport: | 2.54m |
| Wheelbase: | 2.03m |
| Ground Clearance: | 0.24m |
| Max Occupants: | 2 |
| Turntable Rotation | 355° |
| Stowed Drive Speed: | 4.8km/h |
| Raised Drive Speed: | 1km/h |
| Gradeability: | 30% |
| Inside Turning Radius: | 1.83m |
| Outside Turning Radius: | 4.1m |
| Max Slope: | 3°/3° |
| Tyre Type: | Foam Filled |
| Tyre Size: | 9-14.5 |
| Power Source: | 48v 280A |
| Hydraulic Oil Volume: | 30L |
| Machine Weight: | 7500kg |
